Lesson 5 Connection Points

Back to: Gear Prep

Tensioning Buoy

One additional element you can add to your anchoring system is a tensioning buoy.

The tensioning buoy adds upwards force to your anchor line and helps keep the array under tension at low tide. Ideally, the tensioning buoy should sit underwater at high tide and be just barely visible at low tide. One advantage of using a tensioning buoy is that if you drive by your farm at high tide and see the buoys on the surface of the water, it gives you a visual clue that the system probably needs to be tensioned.

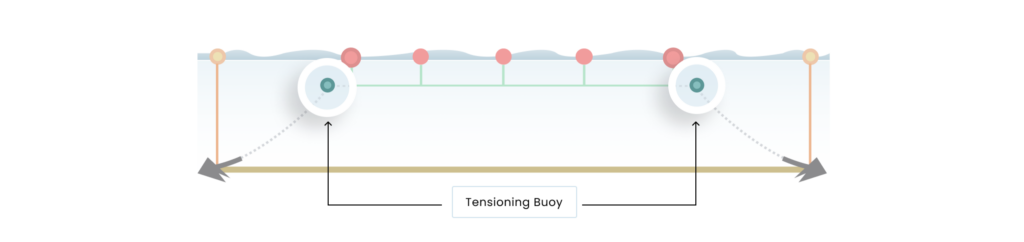

Tensioning buoys are connected along the length of the anchor line to keep the system under tension, even at low tide.
Tensioning Buoy Video

Watch this  overview video to understand how to tension your anchoring system.

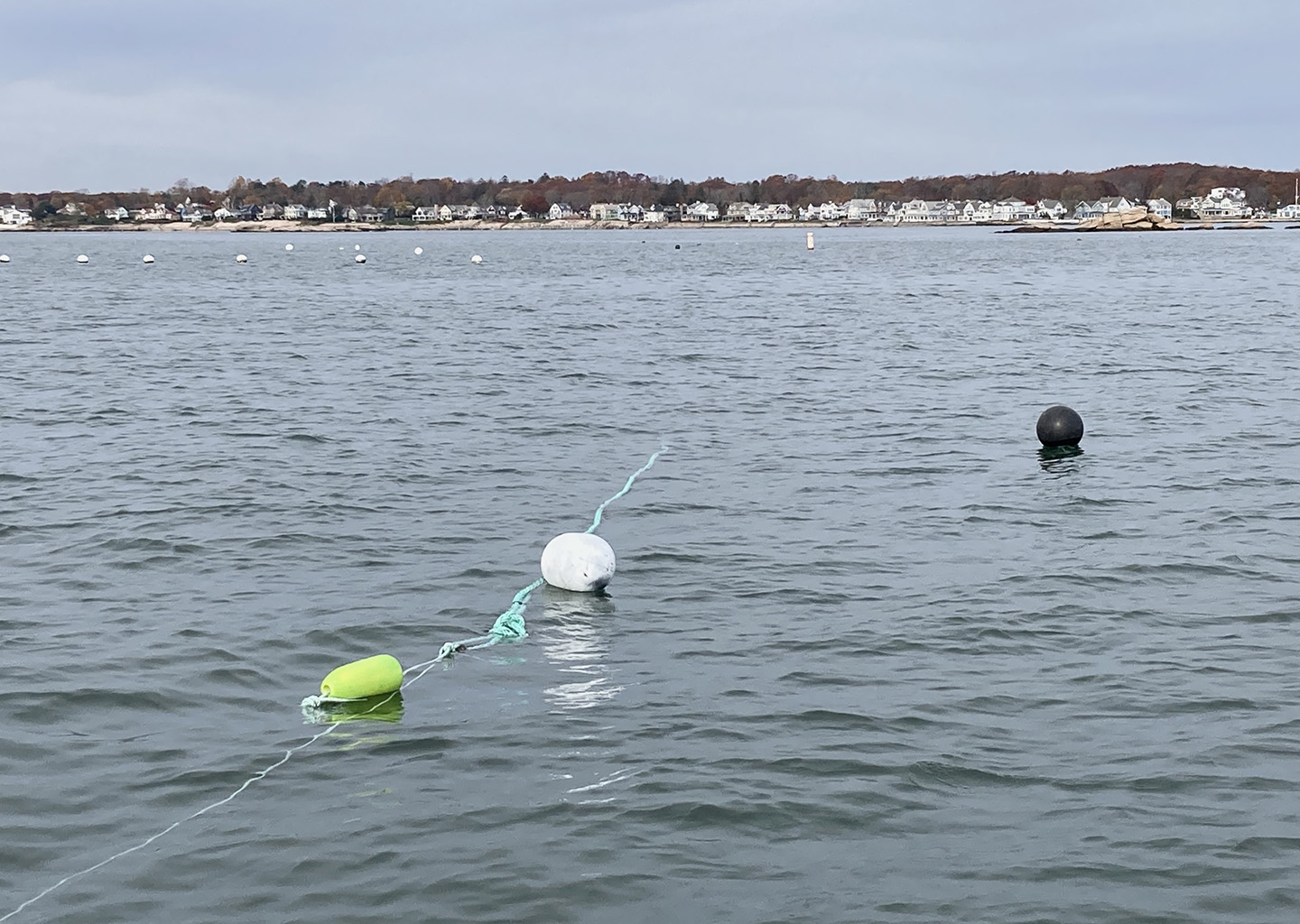

When the system isn’t under tension, the tensioning buoy can be seen from the surface. In this image the green cork marks the loop at the end of the anchor line, the white buoy is the tensioning buoy, and the black buoy is at the end of the tag line attached to the anchor.

When the system is properly tensioned, the tensioning buoys should only be visible at the lowest tides.
